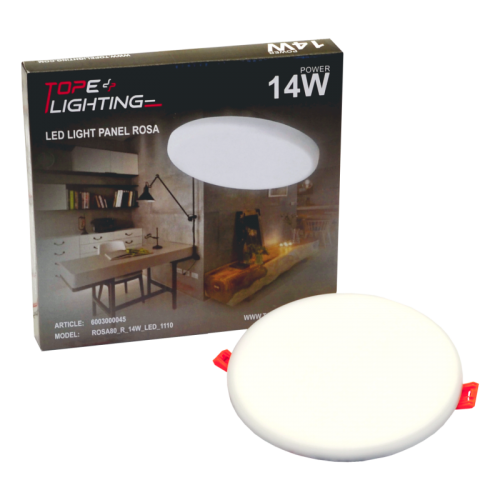

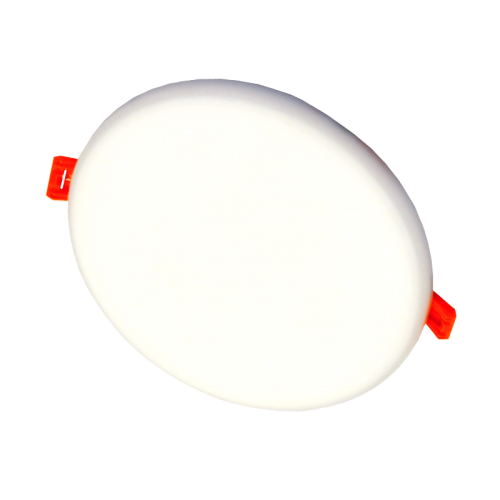

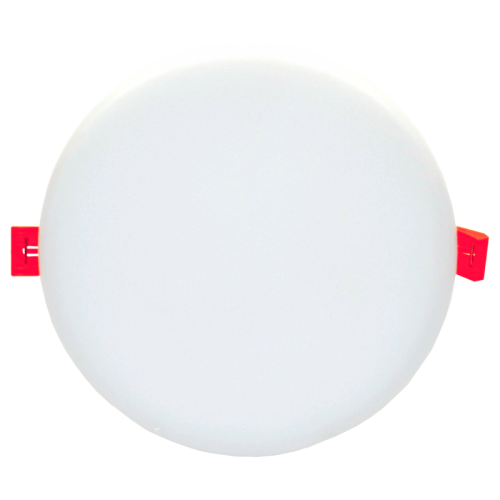

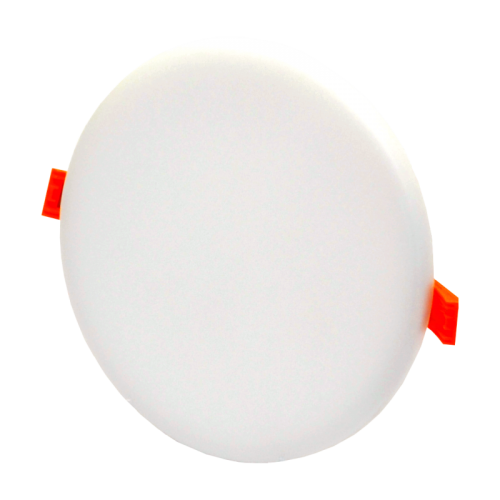

14W round, recessed LED panel ROSA
Product video
Downloads
Code: 6003000045
Model: ROSA80_14W_R_LED_1110

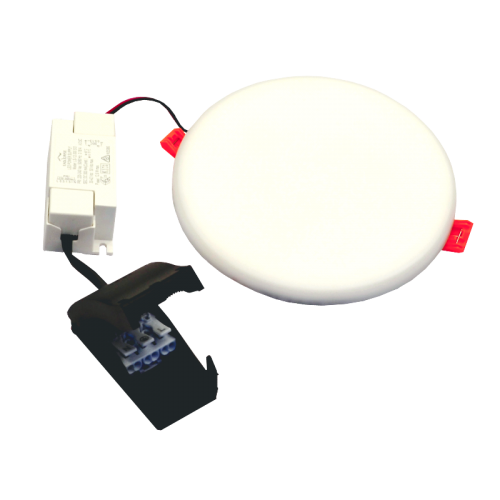

A recessed LED luminaire with a 10mm no frame profile. Electronic, fixed output gear. IP65 enviromental degree, IK08. Driver IP20, IK03. Body: aluminum, white painted (RAL9016). Diffuser: Polycarbonate, UV-stabilised. Electrical connection via push wire terminal blocks Complete with 4000K LED.
| Power: | 14W |
| Total power: | 13,89 W |
| Kelvin: | 4000K |
| Luminaire efficiancy: | 86,32 lm/W |
| Luminaire luminous flux: | 1199 lm |
| Beam angle: | 120° |
| Color rendering index (CRI): | ≥80 |
| Unified Glare Rating (UGR) | <21,5 |
| Protection class IK: | IK08 |
| Type of protection IP: | IP65 |
| LED Brand: | EPISTAR |
| Driver: | LS-12-300SI3 |
| Rated median usefull life: | 50000 L90/B10 25⁰C |
| Dimensions: | Ø155x24mm |
| Cut-out size: | Ø125mm |
| Weight: | 0,250 kg |
| Waranty (months): | 36 |
Downloads
Lighting calculator 14W round, recessed LED panel ROSA
